Tapioca Starch Tumbler Screening Machine

Product Description

Tumbler Screening machine for cassava starch

Navector Tumbler Sifting machine (NTS) with its imitation of artificial screening process mechanically simulated, which supports you with a better sieving performance。

Specification Capacity
Feed Sizes	20 μm – 20 mm
Feed Rates	1 kg/h – 50.000 kg/h
Bulk Densities	20 – 10.000 g/l
Mesh Openings	20 μm – 20 mm
Screens Usable	Stainless steel wire or perforated plates
No. of Decks	1 – 5
Mesh Cleaning	Jumping balls/rings, Rotating brush, Ultrasound
Speed Range	180 – 280 min–1
Screen Movement	3-dimensional, settable
Acceleration	1.3 – 1.8 g / 60 – 80 mm horizontal & 5 – 40 mm vertical
Materials	Carbon steel, stainless steels 304/316
Machine Surface Treatment	Painted, brushed or mirror polished

Applications

Food Additives such as Cassava Starch, Corn Starch Screening, Modified starch Screening

Mesh size: 75 mesh (200miconrs ),80 mesh (180mesh) ,100mesh (150micons )

Machine Diameter 1800mm,Double deck tumbler screening machine

Productivity can reach 9 tons / Hour

Screening accuracy upto 94%

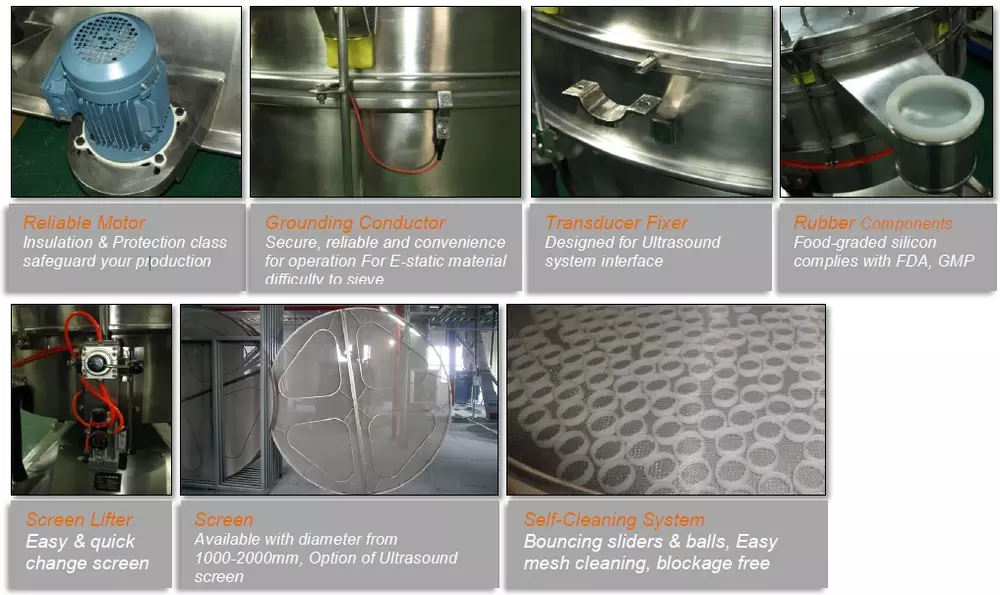

Machine Parts & Components
