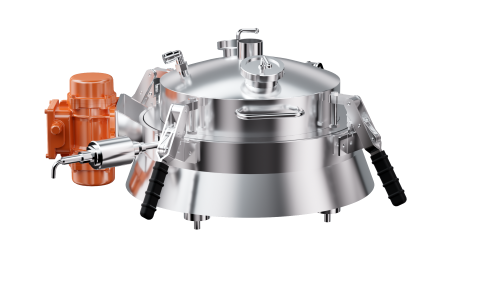

Introduction to NMS series butterfly screen

The NMS series butterfly screen is a screening equipment developed and designed based on the customer's precise demands for online spray powder recovery and online polishing liquid filtration and circulation.

I.Working principle

For the butterfly screen designed for online spray powder recovery, its power source only uses an ultrasonic screening system. For the butterfly screen designed for polishing liquid filtration and recycling, because there is only a small space and the appropriate amount of flowing liquid needs to be controlled, a small vibration motor is used.

II. Equipment advantages

• Low energy consumption of ultrasonic system or small vibration motor
• Material flows directly from top to bottom, and the size of material inlet and outlet can be changed
• High efficiency, small size, easier to configure into the process
• Sealed structure, no dust flying or liquid leakage
• Designed with a mobile bracket, the position can be changed at any time

III. Equipment parameters

Screen mesh	5-625
Net cleaning method	Ultrasonic
Net switching method	Grid fixing method
Feed particle size	Maximum 5mm
Motor voltage	220V 380V
Customization supported	Yes
Material	Stainless steel 304/316

IV. Application field

Mainly used for online spray powder recovery and online polishing liquid filtration and recycling.
