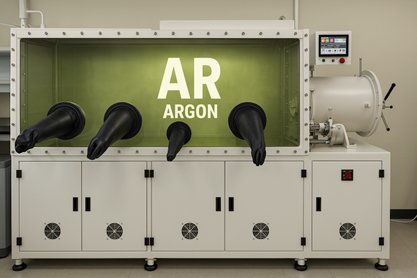

Vacuum Glove Box

1. A stainless steel box with dimensions of 1800mm (length)

2. Removable safety glass front window, tilted operating surface, tempered glass thickness 8mm.

3. Four pairs of butyl rubber gloves.

4. A large transition bin is used for discharging materials. It is located on the right side of the box. The size is Φ400X600mm. The material is SUS304 stainless steel and the thickness is 3mm. There is a ball plate inside for easy discharging.

5. A large transition bin is used for feeding materials. It is located on the left side of the box. The size is Φ400X900mm. The material is SUS304 stainless steel and the thickness is 3mm. The transition cabin has a heating function, with a maximum temperature of 150°C. It can dry 15 2-liter packaging barrels at the same time. It is equipped with a moving tray, and heating tube protection plates are added on both sides of the heating chamber to prevent the packaging barrels from falling sideways and colliding. Heating pipe.

6. The right side of the box (front end of the discharging chamber) is equipped with a packaging barrel transmission ball table with a length of 760mm and a width of 238mm. Used for transporting packaging barrels into and out of the material cabin.

7. Steel structure bracket, 900mm high, equipped with swivel casters.

8. Six KF40 standard interfaces are reserved.

9. The inlet and outlet of the circulation system are equipped with gas filters.

10. Dust filters are added to the suction inlets of the two vacuum pumps, and the filtration accuracy is less than 3u.

11. Add a vacuum cleaner access connection port and a vacuum hose (length 2 meters) in the glove box.

12. An operation guardrail platform and an upper and lower ladder are added to the top of the glove box. The dimensions of the guardrail platform are: length 2030*width 1230*height 700. The guardrail material is carbon steel with plastic spraying on the surface.

13. A purification column is equipped with a copper catalyst and molecular sieve. The adsorption capacity of oxygen and water is 60 liters and 2 kg respectively. After the adsorption is saturated, it is regenerated with hydrogen-containing nitrogen or argon, of which the hydrogen content is 5%.

14. A circulation fan with a flow rate of 90m3/h.

15. Electropneumatically controlled circulation main valve, KF40 standard interface.

16. All gas lines are controlled by solenoid valves, and purification column regeneration is fully automatically controlled.

17. 7" color touch screen, Chinese and English interface.

18. Mainstream brand PLC control system can realize:

1) Single button to realize multiple pumping and filling operations of the transition cabin, saving time

2) Circular purification can be automatically controlled by the water and oxygen indicators in the box, which greatly extends the life of the fan and saves energy.

3) Automatically control box pressure

4) Automatic control of cabinet atmosphere

5) Automatic gas cleaning function in the box

6) System historical data is automatically recorded and displayed

7) Display operation errors and prompts

8) Automatic alarm for cabinet atmosphere

9) All operations have preset conditions to avoid unsafe operations that damage the equipment or destroy the atmosphere in the box.

19. Foot switch is used to adjust the relative pressure in the box.

20. The power interface inside the box is equipped with a multi-hole socket.

21. The heating chamber is equipped with a high-performance temperature controller to easily set the desired temperature. Equipped with heating time setting (that is, heating to the set temperature starts the thermostatic timing, and stops heating when the time is up).

22. Technical indicators: Leakage rate﹤0.05vol%/h; H2O﹤1ppm, O2﹤1ppm

23. other attachments

1) Vacuum pump (two sets)

Mainstream brand, flow rate 12m3/h.

2) oxygen analyzer

Mainstream product, measurement range: 0-500 ppm, accuracy 0.2ppm.

3) water analyzer

Mainstream product, measurement range: 0-1000ppm, accuracy 0.2ppm.

4) Feeding system

The feeding system contains the following components:

1) Storage tank bracket, can bear 300kg

2) Storage tank and glove box docking system

3) 20L storage tank*2

4) The unloading device (including 1 DN100 high vacuum butterfly valve, 1 unloading ball valve, and 1 telescopic feeding port) can quickly put materials into the packaging barrel.
