Microspheres screening process solutions

Introduction to the principle
In the process of microsphere preparation, vibration screening is a key step in achieving material particle size separation. Through vibration screening, materials with different particle sizes can be effectively separated to ensure that the particle size distribution of microspheres meets quality standards.The power of the vibrating screen comes from the vibration motor.The vibration motor generates a composite inertial force through eccentric blocks of different phases at the upper and lower ends. This force is generated by the high-speed rotation of the vibration motor, forcing the vibrating body of the screening machine to make circular motion.

Equipment advantages

On site cleaning

After the production of the equipment is completed, the screen mesh is removed for ultrasonic cleaning, and the interior of the equipment is cleaned comprehensively through the built-in spray ball. The cleaning process fully meets the requirements of ASME-BPE, with no dead corners and full coverage.
After the internal cleaning of the equipment is completed, install the cleaned mesh to prepare for the next step of steam sterilization (SIP).

on-site steam

After on-site cleaning is completed, all components of the equipment are installed and reset, and online sterilization is carried out through the steam sterilization tube on the feeding port. During the sterilization process, the discharge valve (cylinder body) remains open.

Vibration drying technology

Nitrogen vibration drying: The vibration generated during equipment operation combines with nitrogen to remove excess moisture from the material, achieving a drying effect.
Control and Efficiency: All drying processes can be adjusted through a control box, making it easy to operate. The drying process is efficient and does not require intermediate transfer or processing steps.
Vacuum and temperature control: Set the indoor vacuum level to medium to optimize drying conditions.

Homogeneous drying process: The material is evenly distributed on the sieve under the action of vibration.

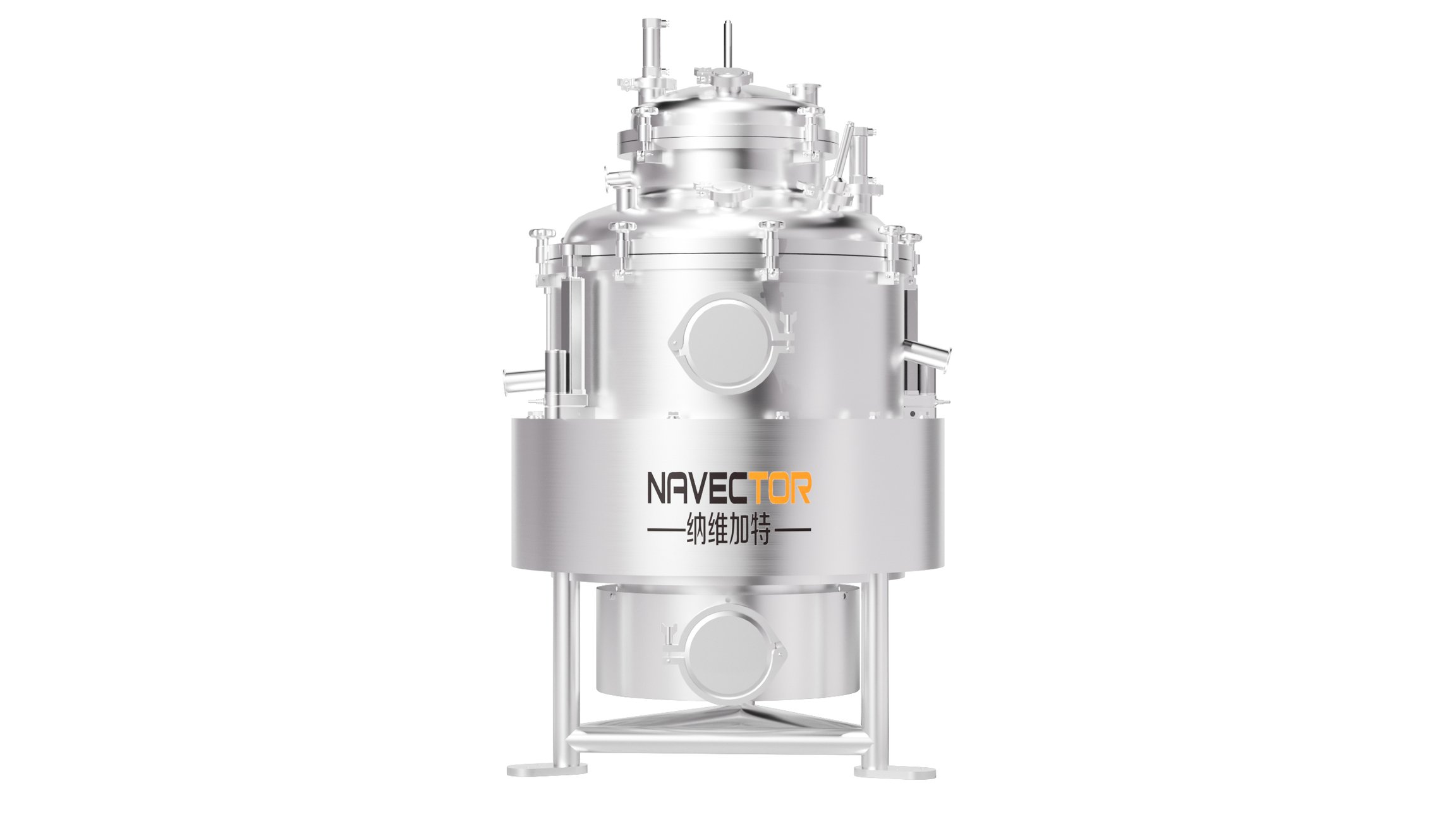

Equipment parameters

	Parameter name	PV10	PV15	PV20	Remark
1	Working cavity volume	3.55L	14.5L	30.5L
2	Material handling capacity	0.1-0.7KG	0.5-1.5KG	1-10Kg	According to particle size distribution and material characteristics
3	Outer diameter/area of coarse screen	130mm/130cm²	270mm/572cm²	360mm/1018cm²
4	Outside diameter/area of ne screen	260mm/530cm²	470mm/1735cm²	610mm/2922cm²
5	Contact material material	316L	316L	316L
6	Motor power	0.25kw/220V	0.37kw/220V	2.2kw/380V	Special counterweight tray to adjust the material running track
7	Motor speed	1470-2950rpm	1470-2950rpm	1470rpm
8	Chamber withstand pressure	-0.1—0.3Mpa	-0.1—0.3Mpa	-0.1—0.3Mpa
9	Equipment size (L * W * H)	430450800	6454801200	8207951250
