NAFS Gyratory Sifters

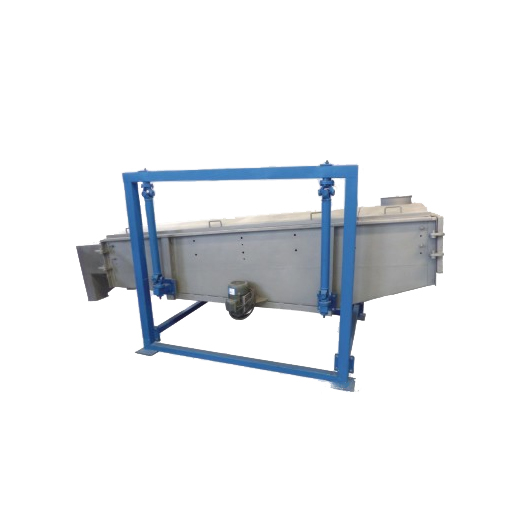

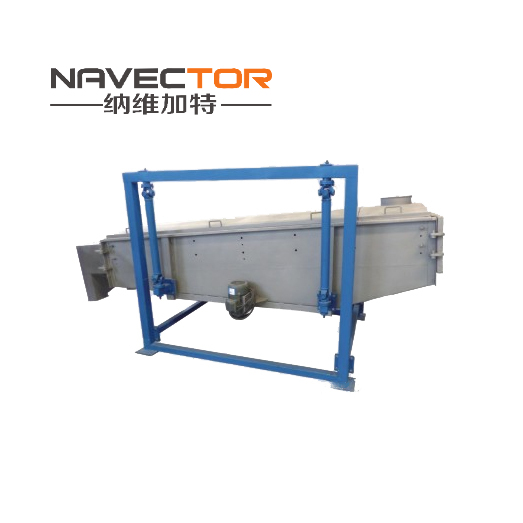

Gyratory Sifter

Dramatically Lower Your Maintenance Costs

The Navector Gyratory Sifter provides extremely high capacity in a very compact, energy efficient footprint.

The Navector Gyratory Sifter can increase your plant’s productivity by reducing the costs associated with routine maintenance and unscheduled repairs.

That means fewer production outages and fewer instances of pulling employees away from other duties for unscheduled maintenance. It all adds up to less frustration, greater productivity, and lower production costs.

L
Benefits
*Easy access to screens through hinged doors on both ends
*Zero-maintenance, lubed for life, single bearing drive
*Quick and easy screen changes and inspection

*Quality and reliability

Screen changes are quick and easy, even for multi-deck screeners. With the Navector Gyratory Sifter you can change any screen at any level of the machine from either end without disturbing the other screens.

Of course, if you want to change the screen through the top cover, you can do so. But you won’t need overhead lifting gear to remove a heavy cover. The dust cover is constructed in sections that can be easily removed.

Screens are tensioned in place and can be easily re-tensioned as needed to return them to peak efficiency as they stretch. Screens are a one-piece hook design that eliminates the need for hundreds of attachment clips.

With the Navector Gyratory Sifter’s easy access doors it’s even possible to inspect for major problems without disturbing any of the screens or ball trays

Specification

Deck	Model	Sieve dimension *width Length** mm	Positive displacement stroke mm	Power kW		Rounds per min r/min			A mm		B mm	C mm	D mm	Weight kg
1	NAFS0515	500X1500	52	1.5		940			2235		700	730	810	350
1	NAFS1021	1000X2100	64	2.2		960			3280		960	1156	1200	960
1	NAFS1030	1000X3000	64	4		960			4485		1050	1156	1200	1100
1	NAFS1530	1500X3000	64	5.5		960			4236		1360	1778	1892	2300
1	NAFS1836	1800X3600	76	7.5		960			5305		1500	2180	2430	3600
1	NAFS2050	2000x5000	92	11		960			6770		1980	2245	2230	5000
2	NAFS0515	500X1500	52	1.5		940			2235		700	730	810	400
2	NAFS1021	1000X2100	64	2.2		960			3280		960	1156	1200	1080
2	NAFS1030	1000X3000	64	4		960			4485		1050	1156	1200	1230
2	NAFS1530	1500X3000	64	5.5		960			4236		1360	1778	1892	2600
2	NAFS1836	1800X3600	76	7.5		960			5305		1500	2180	2430	3900
2	NAFS2050	2000x5000	92	11		960			6770		1980	2245	2230	5200
3	NAFS0515	500X1500	52		1.5		940	2235		760		730	810	450
3	NAFS1021	1000X2100	64		2.2		960	3280		1050		1156	1200	1250
3	NAFS1030	1000X3000	64		4		960	4485		1080		1156	1200	1500
3	NAFS1530	1500X3000	64		5.5		960	4236		1460		1778	1892	3200
3	NAFS1836	1800X3600	76		7.5		960	5305		1560		2180	2430	4100
3	NAFS2050	2000x5000	92		11		960	6770		2040		2245	2230	5500
